FT-95
FT-95 Cartridge type mechanical seals are very easy to replace and gives maximum reliability. It is durable and made from hardwearing material which prevent the downtime and prolong the lifetime of the seal. All axial movement has been eliminated, preventing wear of the shaft and the rubber parts. There is no special tool required to replace the seal or dismantling the pump. With a custom built pump solution from Cartridge, your pump is capable of handling even higher pressures, more aggressive liquids, excessive liquid temperature etc.
Materials
Operating Limit
Salient Features
• The diverted barrier fluid flow path achieves effective heat removal at both sets of seal faces.
• High performance.
• It gives long & reliable seal life.
FT-101
FT-101 Seal is specifically designed for the most demanding of high and low temperature services as well as being suitable for high speed application in a wide range of media. It is a unique design for easy to install. Hydraulically balanced for reduced seal face loading which maximize seal life and allows for vaccum service capability. The Bellows is precision manufactured and is subject to the very highest levels of quality control to ensure consistent and reliable operating performance.

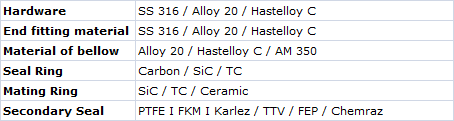

Materials
Operating Limit
Salient Features
• Eliminates the costly and often long lead time issues of exotic elastomers compounds.
• No shaft fretting.
• Unique design for easy installation.
FT-201
FT-201 Seal is hydraulically balanced seal face technology for reducing power consumption. It is basically conceived as multipurpose, multi featured seals which can be used on most of the applications from simple solvents to slurries and from solidifying or crystallizing liquids to even thermic fluids at moderate temperatures under pressure or vaccum. It may use in slurries, big bore pumps, vaccum distillations,salt solution & processing equipments etc. Also it may reduce spares inventory and the flexibility of maintenance.
Materials
Operating Limit
Salient Features
• High performance.
• It can tolerate reversible pressure.
• Non clogging spring protection.
• It may easily replace on conventional double seal.
